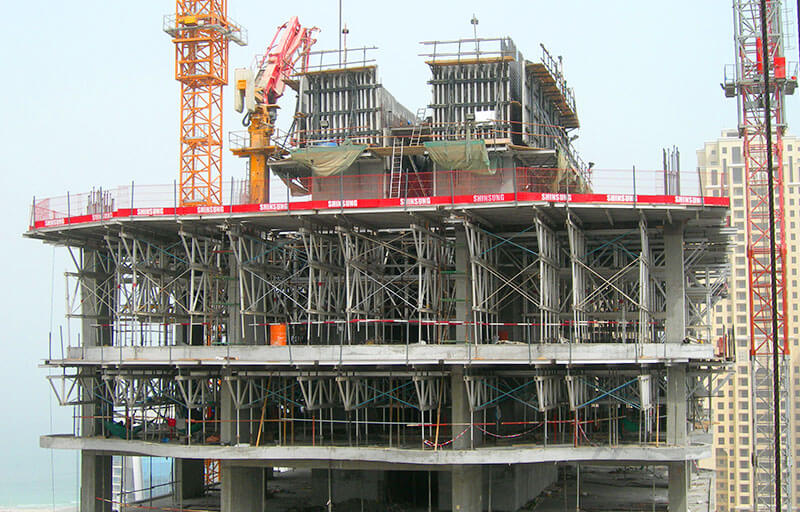

Aluminum Table Form System

· Aluminum flying table form system is a very efficient solution for the forming of large slab areas.
· It is mainly used in frame structure buildings with open facades.
· The table form is assembled only once and can be re-used floor-by-floor, avoiding the need for costly dismantling and re-assemble of the forms during the construction of each floor.
Brand Name Alulite Forms Place of Origin Qingdao, China Certificate ISO9001;CE;SGS
Material Aluminum Alloy 6061-T6 Extrusion Profile Yes Weight 25kg/sqm
Truss Height Ajustable Drop Beam With/Without is ok Plywood Need
Wholly Moving & Lifting Yes Usage Slab/Ceiling casting Application Frame structure building

Advantages

Light Weight

Material is aluminum alloy 6061-T6 for main components such as aluminum beam, chord, diagonal brace and extension staff.

Flexible Operation

Aluminum table form can be designed for up to 12 meters in length with only two trusses. Any larger size can be done by adding truss sections. Working height 2.2 meter to 3.9 meter can be done with one table form height. Higher working height can be done by using two table forms or using scaffolding supports.

Save Labor Cost

1.Assembled easily with only bolts, nuts and pins.
2. No need for costly dismantling and re-assemble of the table forms during the construction of each floor.

Improve Efficiency

1. Very large forming surface improve construction speed.
2. Can be moved within one floor using lowering device, moving glide and moving trolley.
3. Can be moved to next floor as a whole set by tower crane quickly and safely .

Utilisation

Flexible Length and Height Combination

Longer table forms can be done by adding truss sections. Higher working height can be done by using two table forms or using scaffolding supports.

Flat Slab and Drop Beam Versatile

Aluminum table form can be designed to form any drop beams in the slab, and the down stand edge beam.

Lowering of Truss

Can be lowered down from the slab with the lowering device supporting the weight.

Moving of Truss

Aluminum table form can be moved around easily with moving devices.

Flying & Lifting of Table Form

Aluminum table form can be flied out and lifted to next floor with tower crane.

Related Products

Modular Slab Formwork System

Modular Slab Formwork System

Aluminum Shoring Props System with Early Stripping

Aluminum Shoring Props System with Early Stripping

Aluminum Frame Shoring System

Aluminum Frame Shoring System

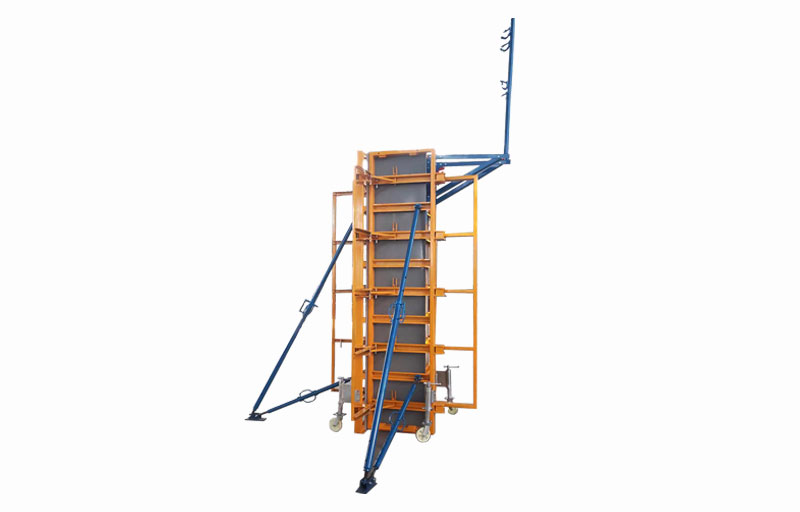

Foldable Column System
