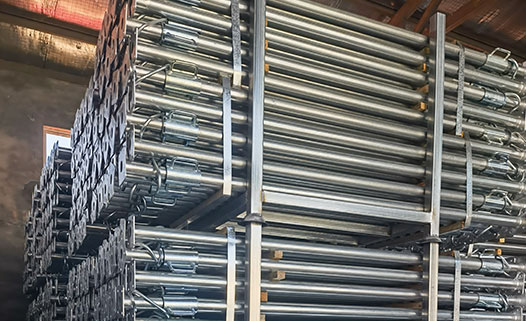

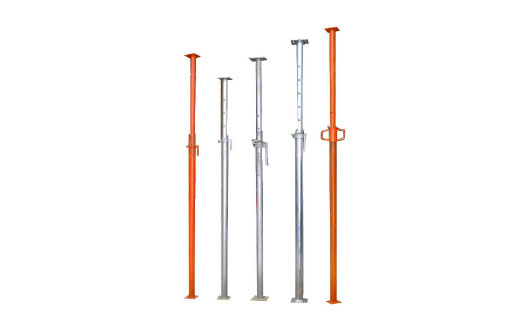

Scaffolding Steel Prop
Product Specification
· Material: Q235/Q355
· Surface: Powder Coating, Electrogalvanized, Hot Galvanized
·Specifications as below:
Details
| Medium Duty Prop Specification | |||||
| Item | Min.Height (mm) | Max.Height (mm) | Weight kg/pc | Outer tube (mm) | Inner tube (mm) |
| 1 | 1730 | 3000 | 17.15 | Φ76 | Φ63 |
| 2 | 1980 | 3500 | 19.34 | ||
| 3 | 2250 | 4000 | 21.53 | ||
| Heavy Duty Prop Specification | |||||
| Item | Min.Height (mm) | Max.Height (mm) | Weight kg/pc | Outer tube (mm) | Inner tube (mm) |
| 1 | 1730 | 3000 | 20.05 | Φ76 | Φ63 |
| 2 | 1980 | 3500 | 23.01 | ||
| 3 | 2250 | 4000 | 25.52 | Φ88.9 | Φ76 |
